Features

45MP Full-Frame CMOS Sensor
DIGIC X Image Processor
8K30 Raw and 4K120 10-Bit Internal Video
Sensor-Shift 5-Axis Image Stabilization
12 fps Mech. Shutter, 20 fps E. Shutter
Dual Pixel CMOS AF II with 1053 Points
0.5' 5.76m-Dot OLED EVF
3.2' Vari-Angle Touchscreen LCD
Subject Tracking with Deep Learning
CFexpress & SD UHS-II Memory Card Slots

Canon R5 Specs

Imaging

Lens Mount Canon RF

Camera Format Full-Frame (1x Crop Factor)

Pixels Actual: 47.1 Megapixel

Effective: 45.0 Megapixel

Maximum Resolution 8192 x 5464

Aspect Ratio 1:1, 3:2, 4:3, 16:9

Sensor Type CMOS

Sensor Size 36 x 24 mm

Image File Format JPEG, Raw

Bit Depth 14-Bit

Image Stabilization Sensor-Shift, 5-Axis

Exposure Control

ISO Sensitivity Auto, 100 to 51200 (Extended: 100 to 102400)

Shutter Speed Mechanical Shutter

1/8000 to 30 Seconds

Electronic Front Curtain Shutter

1/8000 to 30 Seconds

Electronic Shutter

1/8000 to 0.5 Seconds

Metering Method Center-Weighted Average, Evaluative, Partial, Spot

Exposure Modes Aperture Priority, Manual, Program, Shutter Priority

Exposure Compensation -3 to +3 EV (1/3, 1/2 EV Steps)

Metering Range -3 to 20 EV

White Balance Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (White), Shade, Tungsten

Continuous Shooting Mechanical Shutter

Up to 12 fps at 45 MP for up to 180 Frames (Raw) / 350 Frames (JPEG)

Electronic Shutter

Up to 20 fps at 45 MP for up to 83 Frames (Raw) / 170 Frames (JPEG)

Interval Recording Yes

Self-Timer 2/10-Second Delay

Video

Recording Modes Raw 12-Bit

DCI 8K (8192 x 4320) at 23.976p/24.00p/25p/29.97p [2600 Mb/s]

H.265 4:2:2 10-Bit

DCI 8K (8192 x 4320) at 23.976p/24.00p/25p/29.97p [680 to 1300 Mb/s]

UHD 8K (7680 x 4320) at 23.976p/25p/29.97p [680 to 1300 Mb/s]

DCI 4K (4096 x 2160) at 23.976p/24.00p/25p/29.97p/59.94p/100p/119.88p [170 to 1880 Mb/s]

UHD 4K (3840 x 2160) at 23.976p/25p/29.97p/50p/59.94p/100p/119.88p [170 to 1880 Mb/s]

Full HD (1920 x 1080) at 23.976p/25p/29.97p/50p/59.94p [28 to 230 Mb/s]

H.264 4:2:0 8-Bit

DCI 8K (8192 x 4320) at 23.976p/24.00p/25p/29.97p [470 to 1300 Mb/s]

UHD 8K (7680 x 4320) at 23.976p/25p/29.97p [470 to 1300 Mb/s]

DCI 4K (4096 x 2160) at 23.976p/24.00p/25p/29.97p/50p/59.94p/100p/119.88p [120 to 1880 Mb/s]

UHD 4K (3840 x 2160) at 23.976p/25p/29.97p/50p/59.94p/100p/119.88p [120 to 1880 Mb/s]

Full HD (1920 x 1080) at 23.976p/25p/29.97p/50p/59.94p [12 to 180 Mb/s]

External Recording Modes 4:2:2 10-Bit

DCI 4K (4096 x 2160) up to 59.94p

UHD 4K (3840 x 2160) up to 59.94p

Recording Limit Up to 29 Minutes, 59 Seconds

Video Encoding NTSC/PAL

Audio Recording Built-In Microphone (Stereo)

External Microphone Input

Audio File Format AAC, Linear PCM

Focus

Focus Type Auto and Manual Focus

Focus Mode Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S)

Autofocus Points Phase Detection: 1053

Autofocus Sensitivity -6 to +20 EV

Viewfinder and Monitor

Viewfinder Type Electronic (OLED)

Viewfinder Size 0.5'

Viewfinder Resolution 5,760,000 Dot

Viewfinder Eye Point 23 mm

Viewfinder Coverage 100%

Viewfinder Magnification Approx. 0.76x

Diopter Adjustment -4 to +2

Size 3.2'

Resolution 2,100,000 Dot

Display Type Free-Angle Tilting Touchscreen LCD

Flash

Built-In Flash No

Maximum Sync Speed 1/250 Second

Flash Compensation -3 to +3 EV (1/3, 1/2 EV Steps)

Dedicated Flash System eTTL

External Flash Connection Hot Shoe

Interface

Memory Card Slot Slot 1: CFexpress Type B

Slot 2: SD/SDHC/SDXC (UHS-II)

Connectivity USB Type-C (USB 3.1), HDMI D (Micro), 3.5mm Headphone, 3.5mm Microphone

Wireless Wi-Fi

Bluetooth

GPS No

Environmental

Operating Temperature 32 to 104°F / 0 to 40°C

Operating Humidity 0 to 85%

Physical

Battery 1 x LP-E6NH Rechargeable Lithium-Ion

Dimensions (W x H x D) 5.43 x 3.84 x 3.46' / 138 x 97.5 x 88 mm

Weight 1.62 lb / 738 g (Body with Battery and Memory)

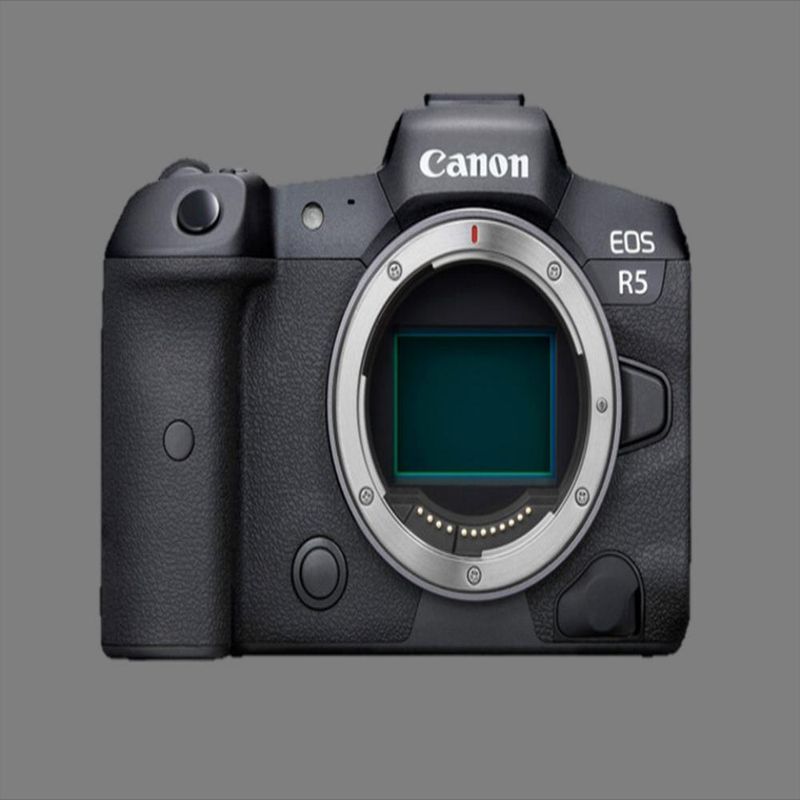

Canon Mirrorless Digital Camera (Body Only)
